Indonesia’s Amman takes delivery of two versatile mooring boats
These boats are designed for operation at the port of Benete in West Nusa Tenggara, Indonesia, and will mainly be used for handling mooring lines for large LNG ships

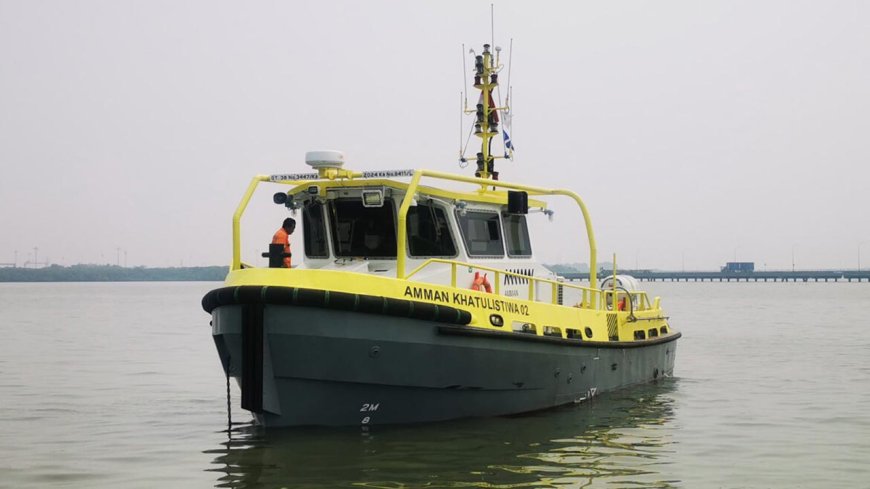

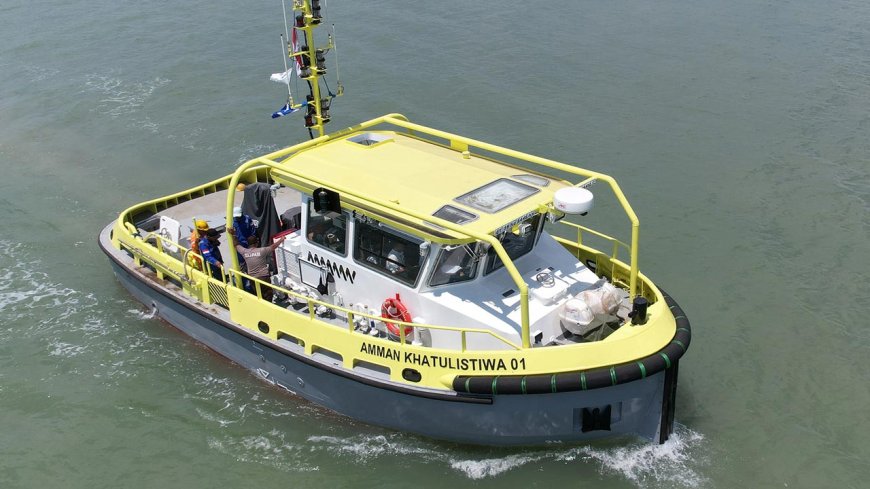

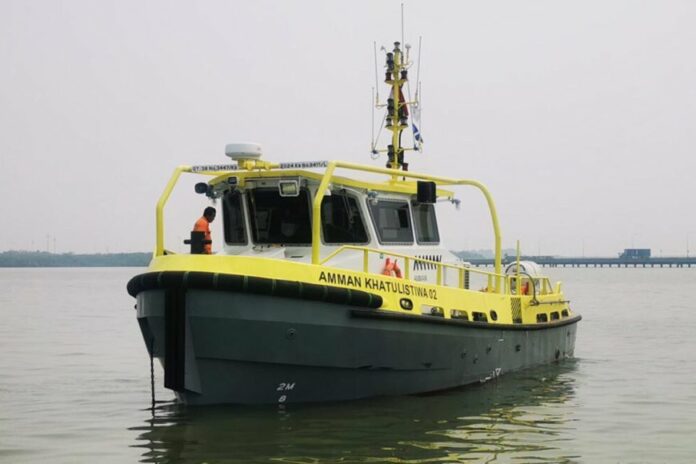

Two versatile RAmbler 1400 mooring boats, Amman Khatulistiwa 01 and Amman Khatulistiwa 02, owned by PT Amman Mineral Nusa Tenggara (AMNT), one of Indonesia’s largest copper-and-gold mining companies, a subsidiary of PT Amman Mineral Internasional Tbk, were recently built by PT Dumas Shipyard in Surabaya, Indonesia.
The completion of these vessels’ construction was supervised by PT IMEC International Services (IMEC), which provides project management and naval engineering services for AMMAN.
These boats are designed for operation at the port of Benete in West Nusa Tenggara, Indonesia, and will mainly be used for handling mooring lines for large LNG ships. Additionally, they are equipped to perform line towing, pushing, and oil spill recovery. During sea trials, they easily exceeded the required performance standards.
Key Particulars
- Length, overall: 13.86 metres
- Beam, moulded: 5.5 metres
- Depth, moulded: 2.2 metres
- Maximum draft (navigational): 1.72 metres
Performance
- Speed: 10.35 knots
- Bollard Pull: 6.39 tonnes
- Capacities
- Fuel oil: 3.8 m3
- Potable water: 0.6 m3
- Dispersant: 1.8 m3
- Recovered oil: 4.4 m3
- Class Notation: LR✠ 100A1, SSC WORKBOAT, G2, MCH
The vessel is configured as a dayboat with a crew of two persons. Inside the compact wheelhouse a small pantry and dinette seating is provided. The lower accommodation has two berths and toilet, along with considerable storage. Access to the engine room is through a watertight door from this space.
The vessel has a single chine hull form for maximum roll damping which also simplifies construction. A rope guard cage protects the wheelhouse. Aft, the bulwarks are lower to prevent fouling by towlines. The mast and radar can fold to reduce air clearance under the flared hull of larger ships.
For light towing the vessel can use a forward towing bitt or an aft bitt with towing hook as well as bow pushing fenders. During oil recovery operations a skimmer can be deployed on the aft deck where a clear 3m x 3m deck space is available for recovery equipment. A crane is provided to deploy this equipment and for general cargo use.
Main propulsion machinery is two Caterpillar C7 diesel engines, rated at 209 kW at 2300 RPM. Propellers are 5 blade, 900mm diameter Kaplan style in Kort nozzles. A single generator provides 220V AC power. Large battery banks charged by a generator and or main engine alternators, provide DC power supply for the vessel’s essential loads, e.g. navigation equipment, communication, lighting, engine room pumps and deck machineries. Wet exhausts are used for main engines and the generator.
