First of two 24 metre catamaran dive support vessels delivered to ADNOC
The vessel exceeded the design contract speed with a sea trial speed of 19.4 knots.

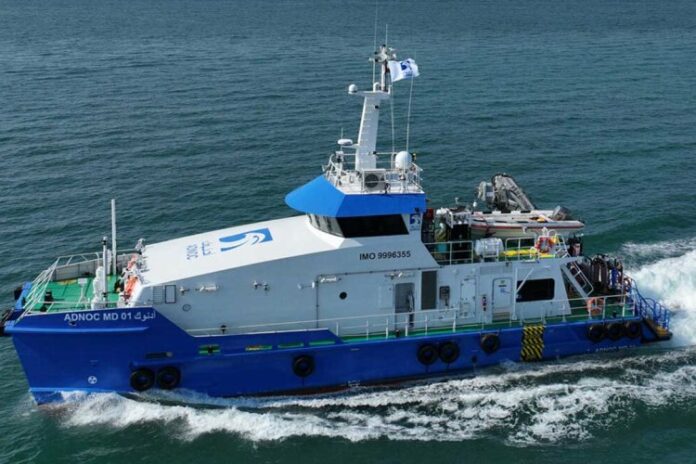

Robert Allan Ltd. has announced that ADNOC MD 01, the first of two sister ships, was successfully delivered to the owner Abu Dhabi National Oil Company (ADNOC) in the United Arab Emirates.
The newly completed catamaran Dive Support Vessels were built by Grandweld Shipyards and are designed by Robert Allan Ltd. to operate supporting local diving operations in the UAE.
Key particulars of the vessel are:
- Length, overall (excluding fenders): 24.90 m
- Beam, moulded: 8.00 m
- Depth, least moulded: 3.15 m
- Maximum draft (navigational): 2.0 m
- Gross Tonnage: 192
Main tank capacities are:
- Fuel oil: 8100 L
- Potable water: 4800 L
- Sewage: 600 L
These aluminum catamarans were designed and constructed to the following notation:
BUREAU VERITAS 1 ✠ HULL • MACH, SPECIAL SERVICE, FAST DIVING SUPPORT, SEA AREA A2
Propulsion machinery consists of two Baudouin 12M26.3 main engines, 1030 kW at 2100 rpm and Reintjes WVS 430/1 gearboxes driving 4-blade conventional propellers.
The vessels are provided with comprehensive equipment for shallow water dive support including a decompression chamber, dive air compressors, compressed air and other gas cylinders, hose reels for underwater tools and diver air supply. The wide beam of the vessel allows for a spacious, full deckhouse width dive compartment with a diver rest area, separated supervisor area and integrated decompression chamber with direct access to the open deck. Diving operations can take place on either side of the vessel or on the integrated swim platforms at the stern.
A large 6.5 m workboat and crane with 10 m working radius is situated on top of the deckhouse to avoid interference with dive operations.
The accommodations are for a crew of five and up to seven divers, including three double crew cabins with mess and galley provided in the deckhouse. All below decks compartments are dedicated to propulsion machinery and dive equipment.
The wheelhouse is designed to provide maximum all-round visibility with an exceptional view to the bow and sides as well as dive operations on the aft deck via CCTV.
The tunnel clearance was designed to be particularly generous to avoid slamming of the wing deck structure.
The vessel exceeded the design contract speed with a sea trial speed of 19.4 knots. A comprehensive CFD program was used to predict resistance during early design work.
